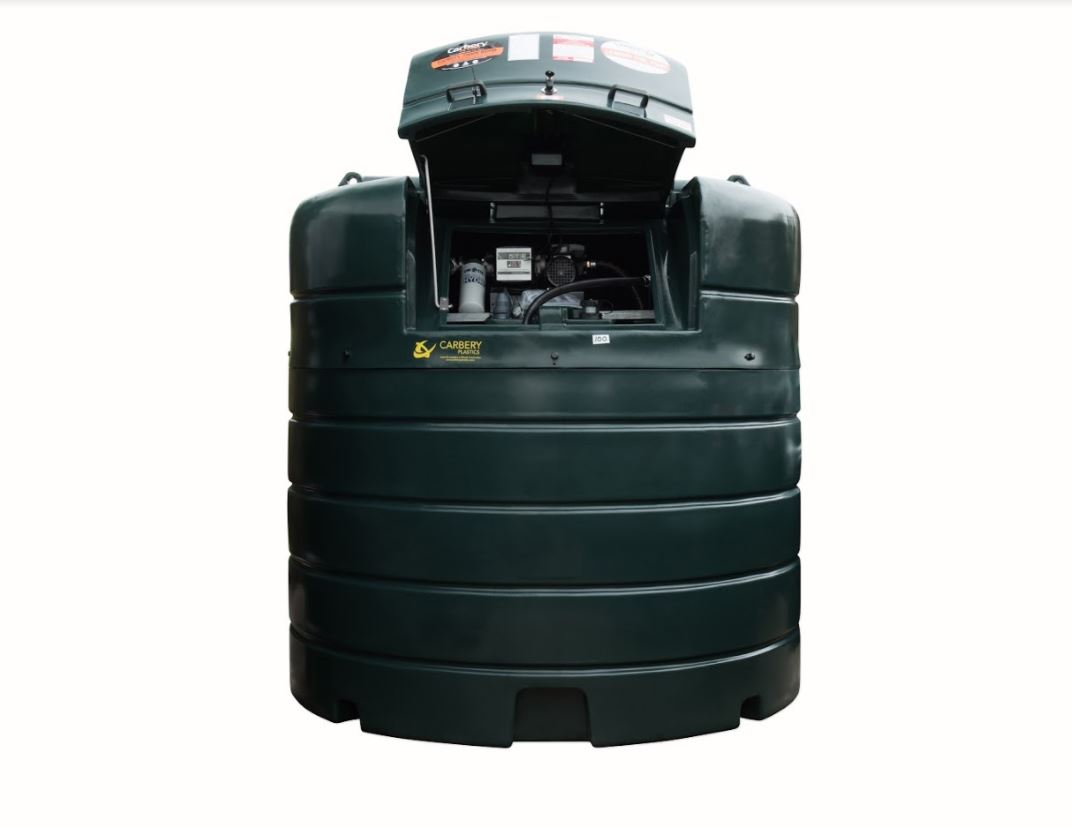

2500 Litre Fuel Point – Premium

Description

Our 2500 Litre Bunded Diesel Fuel Point tank enables forecourt-style refueling, ensuring convenient and safe refueling of vehicles and machinery on-site. The bunded tank with a filtering system helps to prevent spills and contamination. Our Fuel Points are compatible with HVO.

Specifications

• Tank Height: 1900mm
• Tank Diameter: 1870mm
• Tank Weight: 201Kg
• Nominal Capacity: 2347 Litres
• Brimful Capacity: 2500 Litres
• Inlet Diameter: 50.8mm (2″)
• Flow Rate: 56 Litres Per Minute
• *Nominal capacity indicates 95% of brimful volume as per EN 13341.

Benefits

• Made from high-quality, corrosion-resistant materials
• Compliant with EN13341 standards and approved by OFCERT
• Manufactured to ISO standards
• Low maintenance and UV stabilization to prevent damage from sunlight
• Comes with a conditional 10-year warranty against manufacturing, material, and design defects

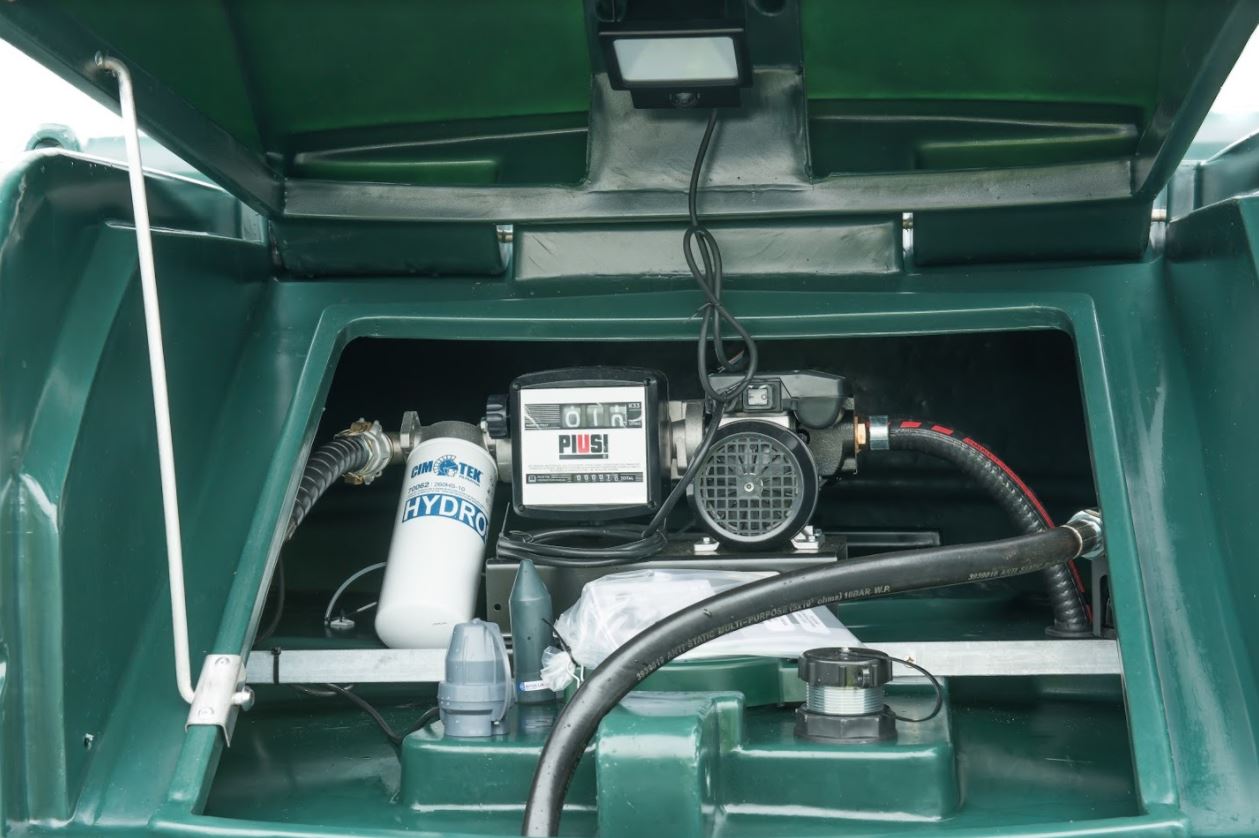

Equipment

• Mesh strainer equipped with diesel-resistant suction pipe
• Non-return valve included
• 56 LPM 230v AC fuel pump installed
• Comes with a 5m fuel-resistant delivery hose
• Integrated with a 10-micron Hydrosorb water/particulate filter
• Equipped with a forecourt standard (24mm) trigger nozzle featuring automatic shut off
• Inspection points are lockable
• The fill point is lockable with a 50.8mm (2”) diameter
• Equipment access is lockable
• Overfill Equipment Device is included
