729.00

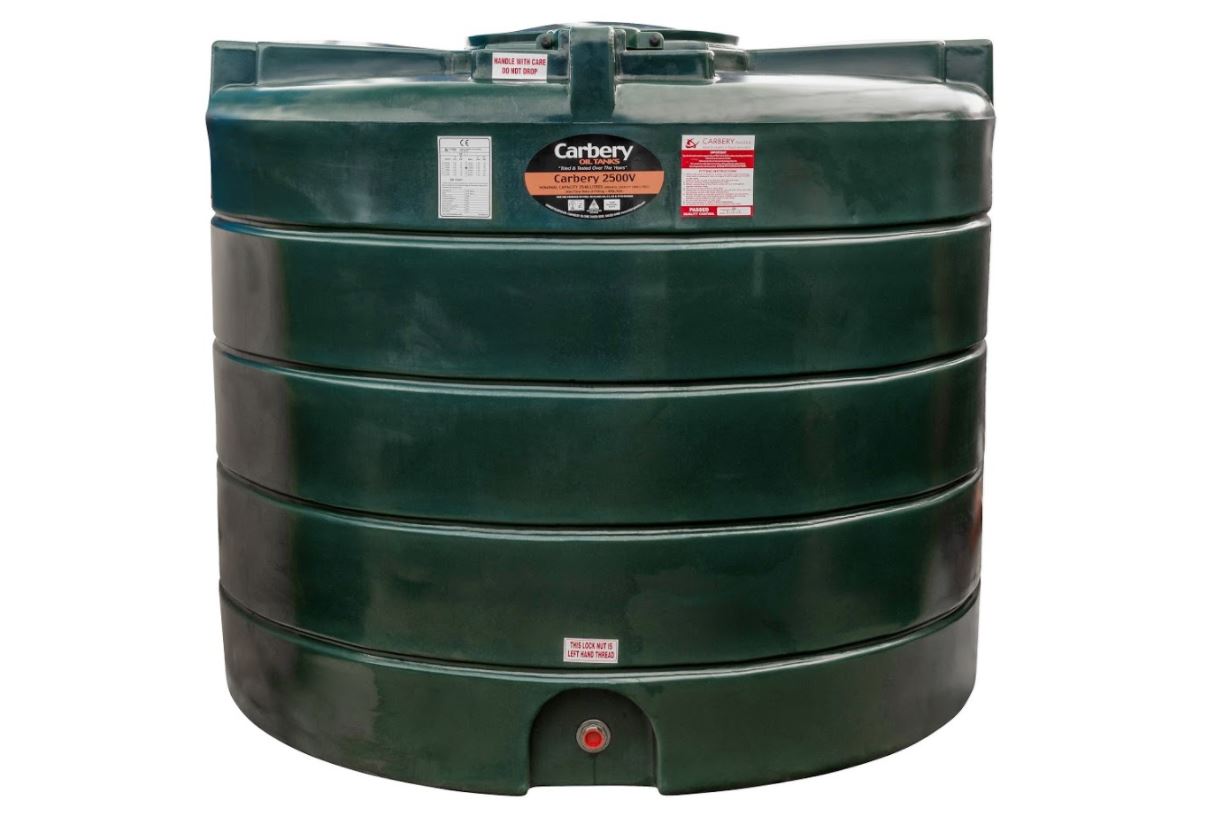

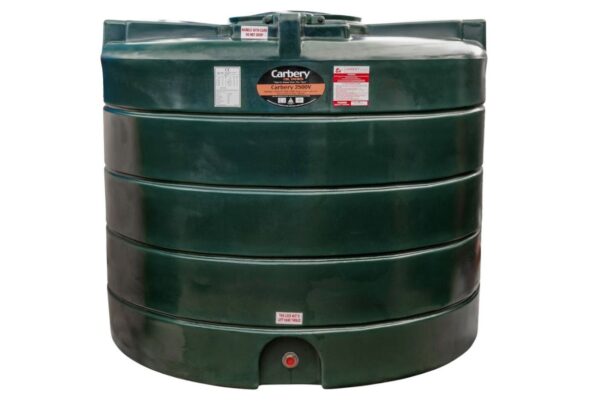

The 2500 Litre Vertical Plastic Tank is a suitable option for Heating Oil Storage Installations where a Bunded Oil Tank is not necessary or when installed within a properly bunded area. It is in compliance with regulations and offers Carbery’s 5-year Single Skin, Conditional Warranty, making it an excellent choice for such installations.

Description

The 2500 Litre Vertical Plastic Tank is a suitable option for Heating Oil Storage Installations where a Bunded Oil Tank is not necessary or when installed within a properly bunded area. It is in compliance with regulations and offers Carbery’s 5-year Single Skin, Conditional Warranty, making it an excellent choice for such installations.



Specification

  • Height: 1400mm
  • Diameter: 1630mm
  • Weight: 80Kg
  • Nominal Capacity: 2554 Litres
  • Brimful Capacity: 2688 Litres
  • Outlet Diameter: 25.4mm (1″) BSP
  • Outlet Position: Bottom
  • Nominal capacity denotes 95% of brimful volume as per EN 13341
  • All UK Single Skin Tanks are supplied with a 50mm (2”) diameter fuel tank vent as per OFTEC requirements
  • All UK Single Skin Tanks are supplied with a 50mm (2″) BSP Offset Fill Connection – Lockable as per OFTEC requirements.



Benefits

  • Requires low maintenance
  • Has UV stabilization to protect against sunlight damage
  • Made of high-quality, corrosion-resistant material
  • Comes with a conditional 5-year warranty against manufacturing, material, and design defects
  • Compliant with EN13341 standards
  • OFCERT approved
  • Manufactured in accordance with ISO standards.



Equipment

  • Lockable oil tank fill/inspection point of 121mm (5″) in size
  • Fuel tank vent fitting point of 50mm (2″) in diameter
  • Electronic gauge point of 32mm in diameter
  • Bottom outlet with a diameter of 25.4mm (1″) BSP

Additional information

Quantity

1 2500V Vertical Tank Green
