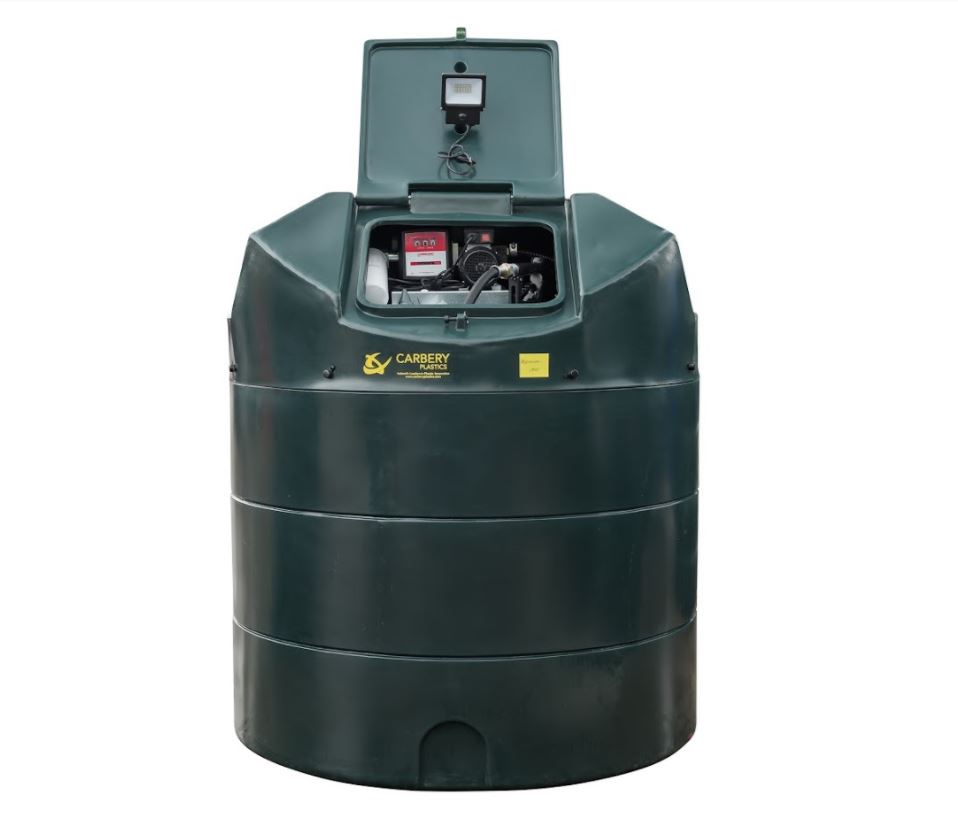

1350 Litre Fuel Point – Premium

Description

The 1350 Litre Bunded Diesel Fuel Point tank offers forecourt-style refueling with a bunded tank and filtration system, enabling easy refueling of vehicles and machinery on your premises. Our Fuel Points are also compatible with HVO.

Specifications

• Tank Height: 1570mm
• Tank Diameter: 1372mm
• Tank Weight: 108Kg
• Nominal Capacity: 1309 Litres
• Brimful Capacity: 1374 Litres
• Inlet Diameter: 50.8mm (2″)
• Flow Rate: 56 Litres Per Minute
• *Note: Nominal capacity represents 95% of brimful volume as per EN 13341.

Benefits

• Our Bunded Fuel Points are UV stabilized to protect against sunlight damage
• They are manufactured using high-quality, corrosion-resistant material
• The Fuel Points are compliant with EN13341 standards
• They are approved by OFCERT
• Manufactured according to ISO standards
• Supplied with a 10-year conditional warranty against manufacturing, material, and design defects.

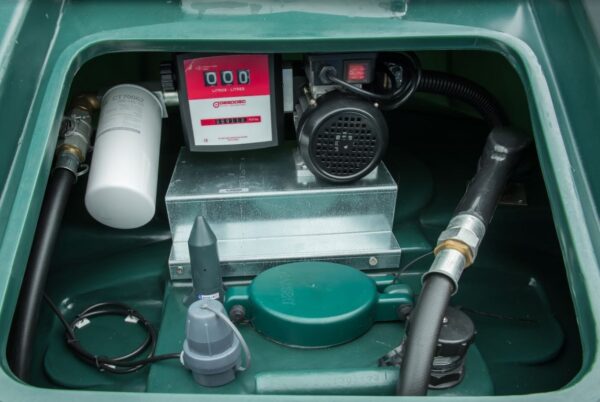

Equipment

• Diesel-resistant suction pipe with mesh strainer included
• Non-return valve installed
• Comes with a 56 LPM 230v AC fuel pump
• Includes a 5m fuel-resistant delivery hose
• Features a Hydrosorb 10-micron integrated water/particulate filter
• Equipped with a forecourt standard (24mm) trigger nozzle with automatic shut off
• Lockable inspection points provided
• 50.8mm (2″) fill point is lockable
• Lockable equipment access
• Overfill Equipment Device included
