929.00

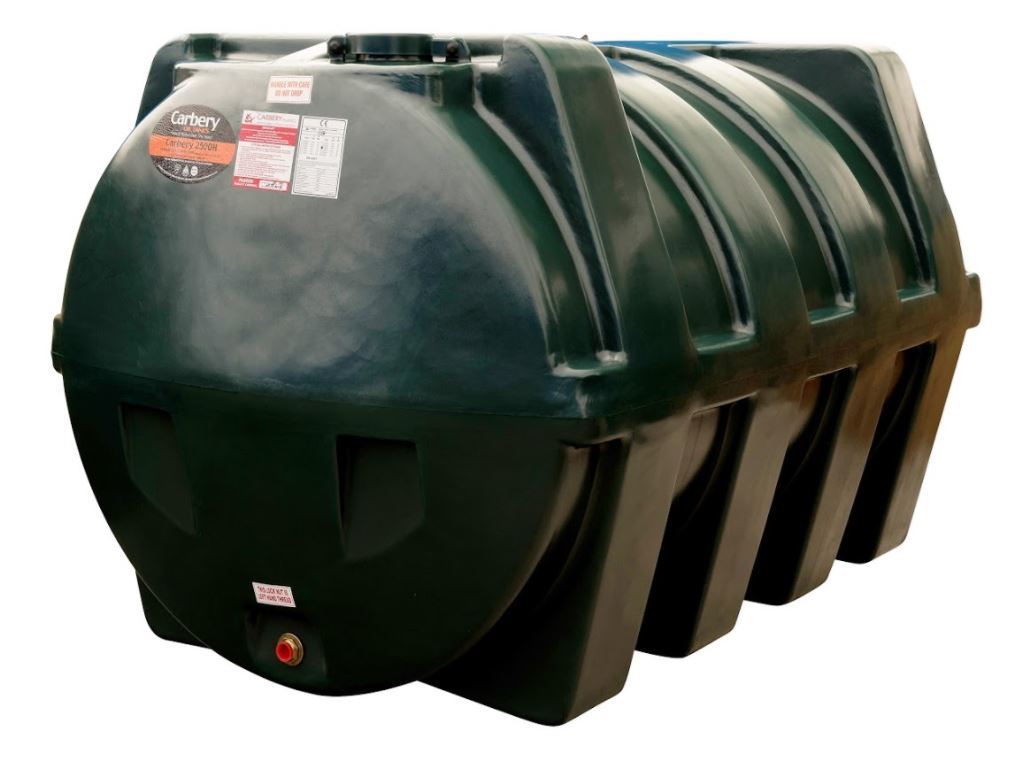

The 2500 Litre Horizontal Plastic Tank is a great option for those looking for heating oil storage installations where a Bunded Oil Tank is not mandatory, or for installation within a suitably bunded area. It is fully compliant with regulations and comes with our 5-year Single Skin, Conditional Warranty, making it an ideal choice for Heating Oil Storage Installations.

Description

The 2500 Litre Horizontal Plastic Tank is a great option for those looking for heating oil storage installations where a Bunded Oil Tank is not mandatory, or for installation within a suitably bunded area. It is fully compliant with regulations and comes with our 5-year Single Skin, Conditional Warranty, making it an ideal choice for Heating Oil Storage Installations.



Specification

  • Length: 2045mm
  • Width: 1370mm
  • Height: 1340mm
  • Weight: 90Kg
  • Nominal Capacity: 2348 Litres
  • Brimful Capacity: 2471 Litres
  • Outlet Diameter: 25.4mm (1″) BSP
  • Outlet Position: Bottom
  • Nominal capacity denotes 95% of brimful volume as per EN 13341
  • All UK Single Skin Tanks are supplied with a 50mm (2”) diameter fuel tank vent as per OFTEC requirements
  • All UK Single Skin Tanks are supplied with a 50mm (2″) BSP Offset Fill Connection – Lockable as per OFTEC requirements.



Benefits

  • Requires low maintenance
  • Provides UV stabilization to protect against sunlight damage
  • Made from high-quality corrosion-resistant materials
  • Comes with a 5-year conditional warranty against manufacturing, material, and design defects
  • Compliant with EN13341 standards
  • OFCERT approved
  • Manufactured according to ISO standards



Equipment

  • Lockable oil tank fill/inspection point with a diameter of 121mm (5 inches)
  • Fuel tank vent fitting point with a diameter of 50mm (2 inches)
  • Electronic gauge point with a diameter of 32mm
  • Bottom outlet with a diameter of 25.4mm (1 inch) and a BSP connection

Additional information

Quantity

1 2500H Jumbo Tank Green
